Lavatory latches and door handles
Lavatory latches & door handles

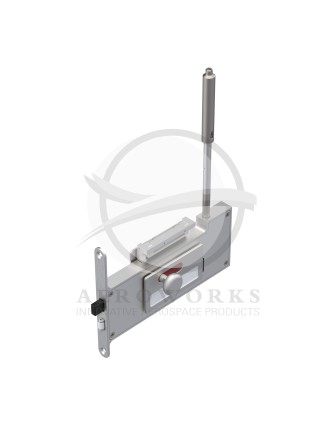

25211X6-XXXX
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 25.4 mm (1.00 in) |
| Color | Clear |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.1 mm (0.75") |
| Type | Vertical shaft latch |
..

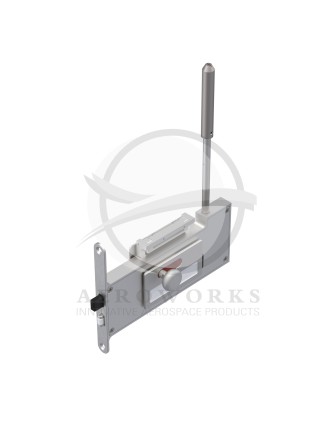

25211X4-XXXX
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 25.4 mm (1.00 in) |
| Color | Clear |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.1 mm (0.75") |
| Type | Vertical shaft latch |
..

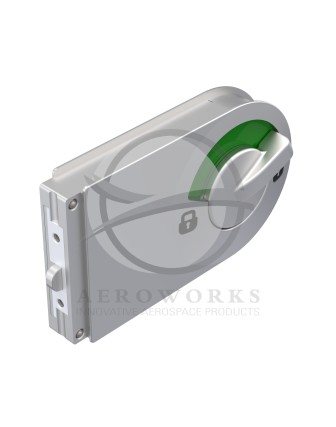

20266X4
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 15.2 mm (0.60 in) |
| Color | Clear |
| Finish | Blasted |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Dead bolt latch |
..

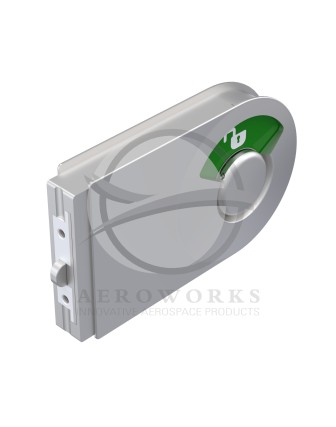

20266X3
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 15.2 mm (0.60 in) |
| Color | Clear |
| Finish | Blasted |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Dead bolt latch |
..
20265X4
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 15.2 mm (0.60 in) |
| Color | Clear |
| Finish | Blasted |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Vertical shaft latch |
..

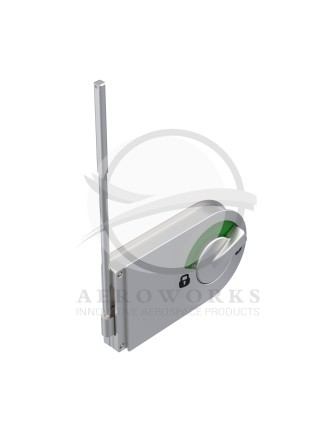

20265X3
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 15.2 mm (0.60 in) |
| Color | Clear |
| Finish | Blasted |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Vertical shaft latch |
..

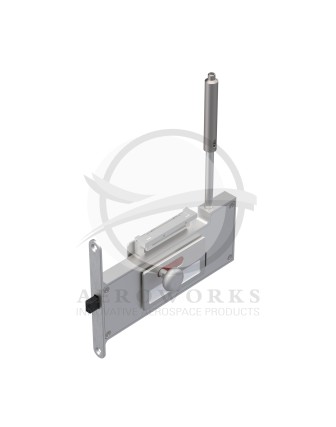

20211X6-XXXX
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 12.8 mm (0.50 in) |
| Color | Clear |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.0 mm (0.75") |
| Type | Vertical shaft latch |
..

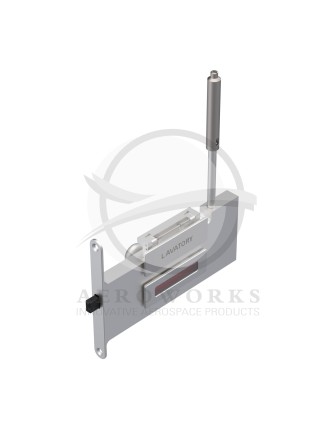

20211X5-XXXX
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 12.7 mm (0.50 in) |
| Color | Clear |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.0 mm (0.75") |
| Type | Vertical shaft latch |
..
25206-105
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 12.5 mm (0.49 in) |
| Color | Clear |
| Combined with | 20259-207 |
| Finish | Brushed |
| Override | No |
| Panel thickness | 25.0 mm (0.98") |
| Type | Door handle |
..

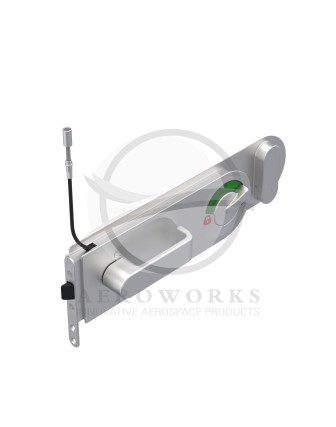

20268-2
| Aeroworks | |
| Application | Blade door |
| Bolt | Dual bolt |
| Bolt travel | 19.1 mm (0.75 in) |
| Color | Clear |
| Combined with | 20234-5 |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Door handle lock latch |
..

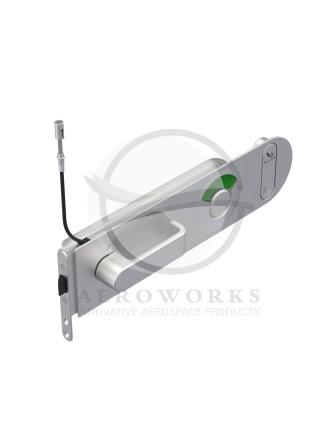

20268-1
| Aeroworks | |
| Application | Blade door |
| Bolt | Dual bolt |
| Bolt travel | 19.1 mm (0.75 in) |
| Color | Clear |
| Combined with | 20234-5 |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Door handle lock latch |
..

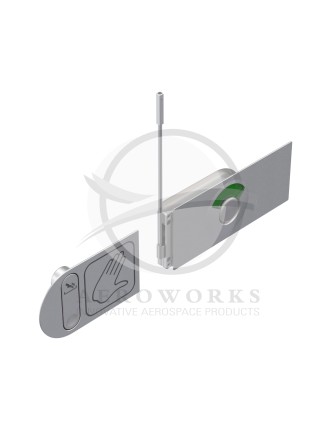

20267-2
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 28.4 mm (1.12 in) |
| Color | Clear |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Vertical shaft latch |
..

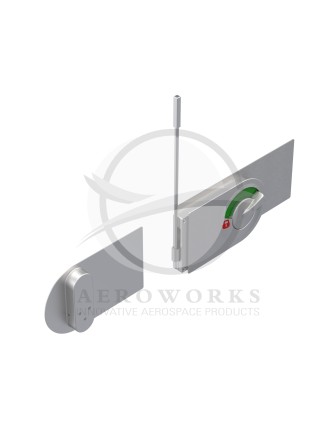

20267-1
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 28.4 mm (1.12 in) |
| Color | Clear |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 19.3 mm (0.76") |
| Type | Vertical shaft latch |
..

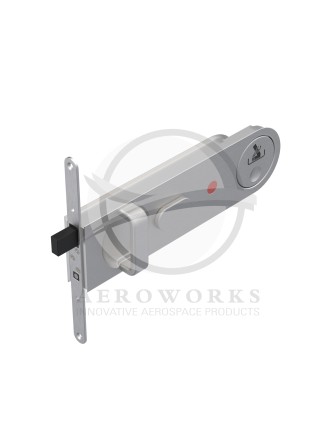

20261-102
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 25.2 mm (0.99 in) |
| Color | Clear |
| Combined with | 20261-202 |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Dead bolt latch |
..
20261-101
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Single bolt |
| Bolt travel | 25.2 mm (0.99 in) |
| Color | Clear |
| Combined with | 20261-201 |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Dead bolt latch |
..
20259-151
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 25.7 mm (1.01 in) |
| Color | Clear |
| Combined with | 20259-201, 20259-203 |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Door handle lock latch |
..
20259-102
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 24.0 mm (0.94 in) |
| Color | Clear |
| Combined with | 20259-202, 20259-204 |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Door handle lock latch |
..

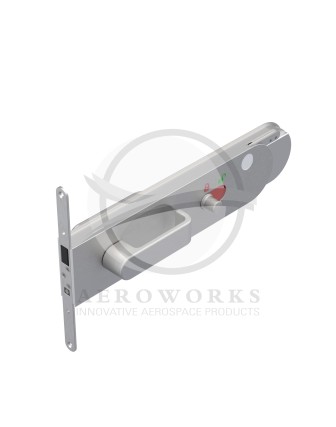

20259-101
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 24.0 mm (0.94 in) |
| Color | Clear |
| Combined with | 20259-201, 20259-203 |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Door handle lock latch |
..
20258-101
| Aeroworks | |
| Application | Blade door |
| Bolt | Triple Hook |
| Bolt travel | 30.9 mm (1.22 in) |
| Color | Clear |
| Combined with | 20258-201 |
| Finish | Brushed |
| Override | No |
| Panel thickness | 25.0 mm (0.98") |
| Type | TTOL latch |
..

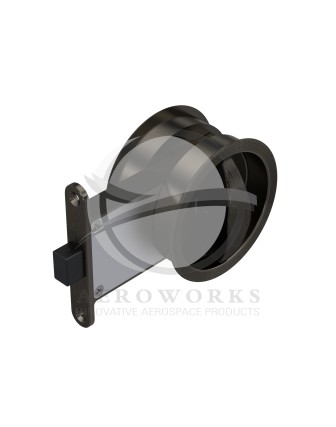

20239-1
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 12.1 mm (0.48 in) |
| Color | Satin antique nickel |
| Combined with | 20168-14, 20239-3 |
| Finish | Brushed and Blasted |
| Override | No |
| Panel thickness | 50.8 mm (2.00") |
| Type | Door handle |
..

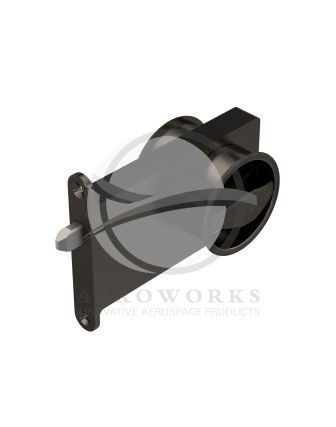

20238-2
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 14.7 mm (0.58 in) |
| Color | Satin antique nickel |
| Combined with | 20238-3, 20238-5 |
| Finish | Brushed and Blasted |
| Override | Yes |
| Panel thickness | 50.8 mm (2.00") |
| Type | Dead bolt latch |
..

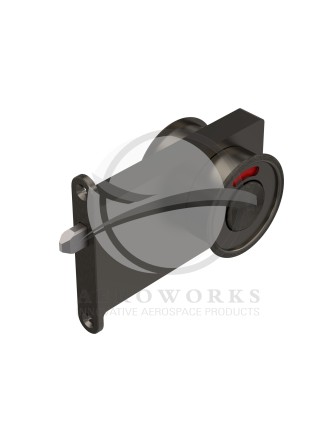

20238-1
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 14.7 mm (0.58 in) |
| Color | Satin antique nickel |
| Combined with | 20238-3, 20238-5 |
| Finish | Brushed and Blasted |
| Override | Yes |
| Panel thickness | 50.8 mm (2.00") |
| Type | Dead bolt latch |
..
20233-1
| Aeroworks | |
| Application | Blade door |
| Bolt | Single bolt |
| Bolt travel | 13.2 mm (0.52 in) |
| Color | Clear |
| Feature | Translucent window |
| Finish | Brushed and Blasted |
| Override | Yes |
| Panel thickness | 22.5 mm (0.89") |
| Type | Door handle lock latch |
..

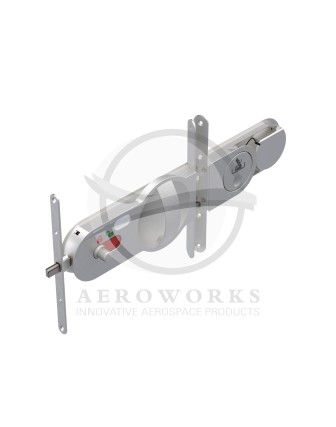

20224-104
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 29.4 mm (1.16 in) |
| Color | Clear |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Door handle lock latch |
..

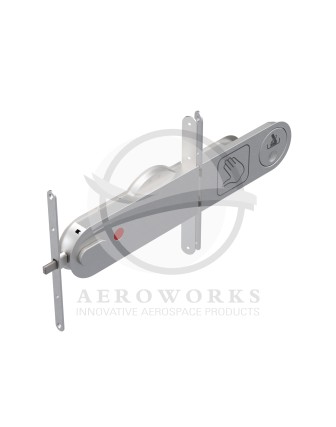

20224-103
| Aeroworks | |
| Application | Bi-fold door |
| Bolt | Dual bolt |
| Bolt travel | 29.4 mm (1.16 in) |
| Color | Clear |
| Feature | Translucent window |
| Finish | Brushed |
| Override | Yes |
| Panel thickness | 25.4 mm (1.00") |
| Type | Door handle lock latch |
..
