Retainers

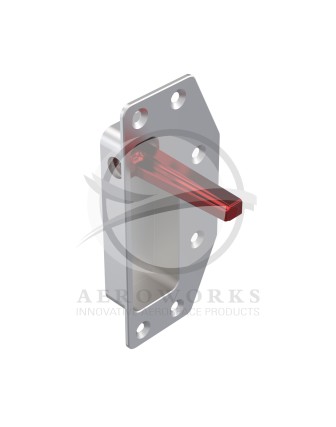

11004-3
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | None |
| Bolt length in panel | N/A |
| Bolt thread | N/A |
| Degrees operation | 90⁰ |
| Length | 53.6 mm (2.11 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Retainer with cup |
..
10278-2
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 25.4 mm (1.00 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ |
| Length | 133.4 mm (5.25 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10278-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 25.4 mm (1.00 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ |
| Length | 133.4 mm (5.25 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10276-2
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Brushed |
| Bolt length in panel | 12.7 mm (0.50 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 110⁰ spring loaded |
| Length | 59.9 mm (2.36 in) |
| LH/RH to engage | RH |
| Retainer color | Clear |
| Retainer finish | Brushed |
| Type | Standard retainer |
..
10276-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Brushed |
| Bolt length in panel | 12.7 mm (0.50 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 110⁰ spring loaded |
| Length | 59.9 mm (2.36 in) |
| LH/RH to engage | LH |
| Retainer color | Clear |
| Retainer finish | Brushed |
| Type | Standard retainer |
..
10270-4
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 15.9 mm (0.63 in) |
| Bolt thread | 1/2 - 20 |
| Degrees operation | 90⁰ |
| Length | 69.6 mm (2.74 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Blasted |
| Type | Standard retainer |
..
10270-3
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 15.9 mm (0.63 in) |
| Bolt thread | 1/2 - 20 |
| Degrees operation | 90⁰ |
| Length | 69.6 mm (2.74 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Blasted |
| Type | Standard retainer |
..
10270-2
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 15.9 mm (0.63 in) |
| Bolt thread | 1/2 - 20 |
| Degrees operation | 90⁰ |
| Length | 130.0 mm (5.12 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Blasted |
| Type | Standard retainer |
..
10270-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 15.9 mm (0.63 in) |
| Bolt thread | 1/2 - 20 |
| Degrees operation | 90⁰ |
| Length | 130.0 mm (5.12 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Blasted |
| Type | Standard retainer |
..

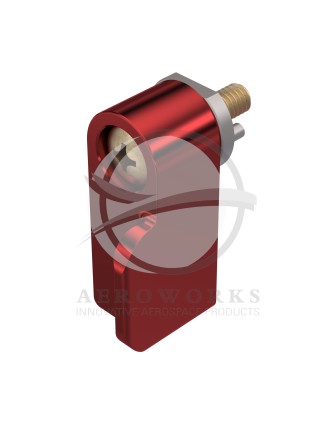

10265-7
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | Plated |
| Bolt length in panel | 9.8 mm (0.39 in) |
| Bolt thread | # 10-32 |
| Degrees operation | 180⁰ |
| Length | 37.5 mm (1.48 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..

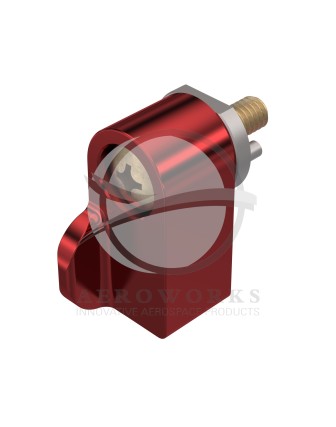

10265-6
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | Plated |
| Bolt length in panel | 9.8 mm (0.39 in) |
| Bolt thread | # 10-32 |
| Degrees operation | 90⁰ |
| Length | 29.6 mm (1.17 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10265-3
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | Plated |
| Bolt length in panel | 9.8 mm (0.39 in) |
| Bolt thread | # 10-32 |
| Degrees operation | 90⁰ |
| Length | 37.5 mm (1.48 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10265-1
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | Plated |
| Bolt length in panel | 9.8 mm (0.39 in) |
| Bolt thread | # 10-32 |
| Degrees operation | 90⁰ |
| Length | 58.1 mm (2.29 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10258-4
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | None |
| Bolt length in panel | 9.7 mm (0.38 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 47.5 mm (1.87 in) |
| LH/RH to engage | RH |
| Retainer color | None |
| Retainer finish | Passivated |
| Type | Standard retainer |
..
10258-3
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | None |
| Bolt length in panel | 9.7 mm (0.38 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 47.5 mm (1.87 in) |
| LH/RH to engage | LH |
| Retainer color | None |
| Retainer finish | Passivated |
| Type | Standard retainer |
..
10258-2
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | None |
| Bolt length in panel | 9.7 mm (0.38 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 47.5 mm (1.87 in) |
| LH/RH to engage | RH |
| Retainer color | None |
| Retainer finish | Passivated |
| Type | Standard retainer |
..
10258-1
| Aeroworks | |
| Bolt head color | Per NAS spec |
| Bolt head finish | None |
| Bolt length in panel | 9.7 mm (0.38 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 47.5 mm (1.87 in) |
| LH/RH to engage | LH |
| Retainer color | None |
| Retainer finish | Passivated |
| Type | Standard retainer |
..
10253-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 11.6 mm (0.46 in) |
| Bolt thread | 7/16 - 20 |
| Degrees operation | 90⁰ |
| Length | 76.2 mm (3.00 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10243-3
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 13.0 mm (0.51 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 360⁰ |
| Length | 120.0 mm (4.72 in) |
| LH/RH to engage | RH and LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Butterfly retainer (dual) |
..
10243-2
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 13.0 mm (0.51 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 70.0 mm (2.76 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10243-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 13.0 mm (0.51 in) |
| Bolt thread | 1/4 - 28 |
| Degrees operation | 90⁰ |
| Length | 70.0 mm (2.76 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10241-1
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Blasted |
| Bolt length in panel | 33.1 mm (1.30 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ spring loaded |
| Length | 80.5 mm (3.17 in) |
| LH/RH to engage | LH |
| Retainer color | Gold |
| Retainer finish | Polished |
| Type | Butterfly retainer (dual) |
..
10240-8
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 45.3 mm (1.78 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ |
| Length | 131.8 mm (5.19 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10240-7
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 45.3 mm (1.78 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ |
| Length | 131.8 mm (5.19 in) |
| LH/RH to engage | LH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
10240-6
| Aeroworks | |
| Bolt head color | Passivate |
| Bolt head finish | Polished |
| Bolt length in panel | 45.3 mm (1.78 in) |
| Bolt thread | 3/8 - 24 |
| Degrees operation | 90⁰ |
| Length | 84.3 mm (3.32 in) |
| LH/RH to engage | RH |
| Retainer color | Red (Candy apple) |
| Retainer finish | Polished |
| Type | Standard retainer |
..
